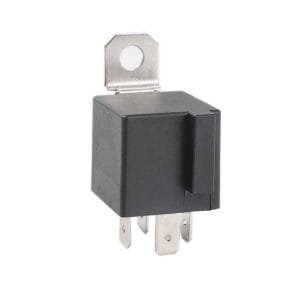

- With a magnet model, strong magnetic arc extinguishing
- Suitable for compressor, heater, water pump, four-way valve, automobile, etc
- Full copper enameled wire, silver alloy contacts
- With a card slot, it can be installed and fixed with an iron backrest
- Nylon flame retardant shell
Specification
| Contact Form | A group often open（1A） |
| Contact Material | AgSno2 |
| Max,Operating Current | 15A/48V |
| Max.Operating Voltage | 60VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength（Coil and Contact） | 500VAC(1min,leakage＜1A) |
| Ambient Temperature | -40°C~+75°C |
| Operate/Release Time | Under 50ms |
| Release Time | Under 50ms |
| Mechanical Llife（min） | 1000 thousands times |
| Electrical Life（min） | 100000 times |
| Package mode | Plastic seal |
Coil Ratings
| Standard | Normalvoltage (VDC) | Pick-upvoltage (VDC) | Drop-outvoltage (VDC) | Coilresistace (Q±10%) | Parallel resistance (Q±5%) | Equivalnt resistane (Q±10%) | Power consumption (W) |
| 12 | ≤8.4 | ≥1.2 | 80 | – | – | 1.8 | |
| 12 | ≤8.4 | ≥1.2 | 80 | 680 | 71.5 | 1.8 | |
| 24 | ≤16.8 | ≥2.4 | 320 | – | – | 1.8 | |
| 24 | ≤16.8 | ≥2.4 | 320 | 2700 | 1.8 |
ORDERING GUIDE
| FLS 825CT :Relay Type | 012 | 1A | R | XX |
| Coil Voltage: 012:12VDC 024:24VDC | ||||
| Contact Form: 1A : | ||||
| R parallel resistance （680Ω 12V） （2700Ω 24V） Coil Parallel Components： D1Parallel transient inhibition of the secondary tube cathode connection86foot None: no parallel element | ||||
| Customer Request：XXXX | ||||

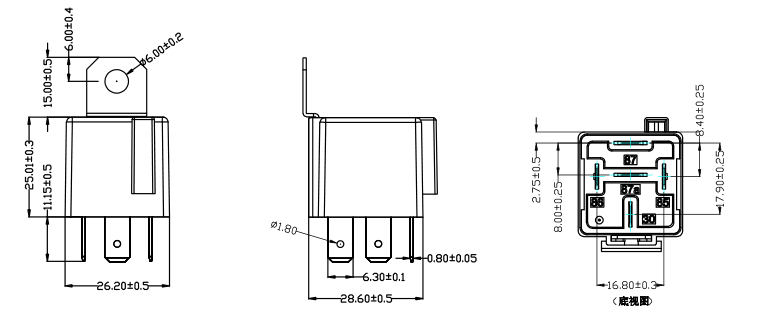

EXTERNAL DIMENSIONS
Remark: （1）In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension＞1mm and≤5mm, tolerance should be ±0.3mm; outline dimension＞5mm,
tolerance should be ±0.4mm.
