Disconnector

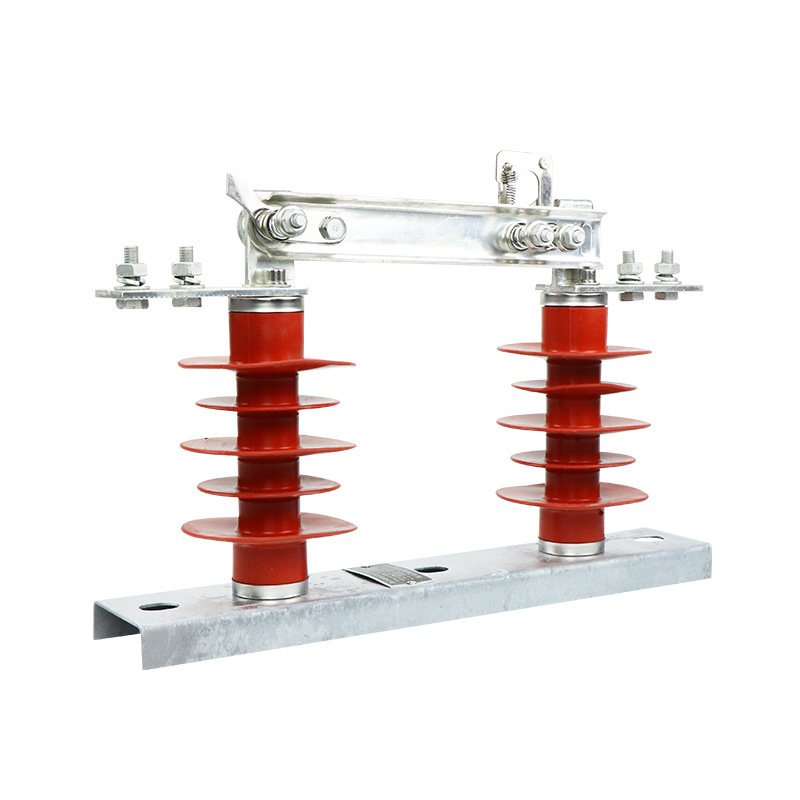

Product ModelHGW9-12/630HGW9-12/1250Product Price USD106-174(1-100)USD101-166(100-200)USD99-162(≥200)

Product Overview

This product is a three-phase line system single-phase use, simple structure, economy, easy to use.This product is a single-break vertical open structure, single-pole isolation switch pillar insulator is installed on the respective base frame, mainly by the base, pillar insulator, the main circuit part, self-locking device and so on. The knife structure is used to cut off and close the circuit. Each phase of the knife is composed of two conductive blades, both sides of the blade are equipped with compression springs, adjusting the height of the spring can obtain the contact pressure required by the switch knife. When the switch is opened and closed, the insulated hook rod is used to operate the mechanism part, and the knife has a self-locking device.

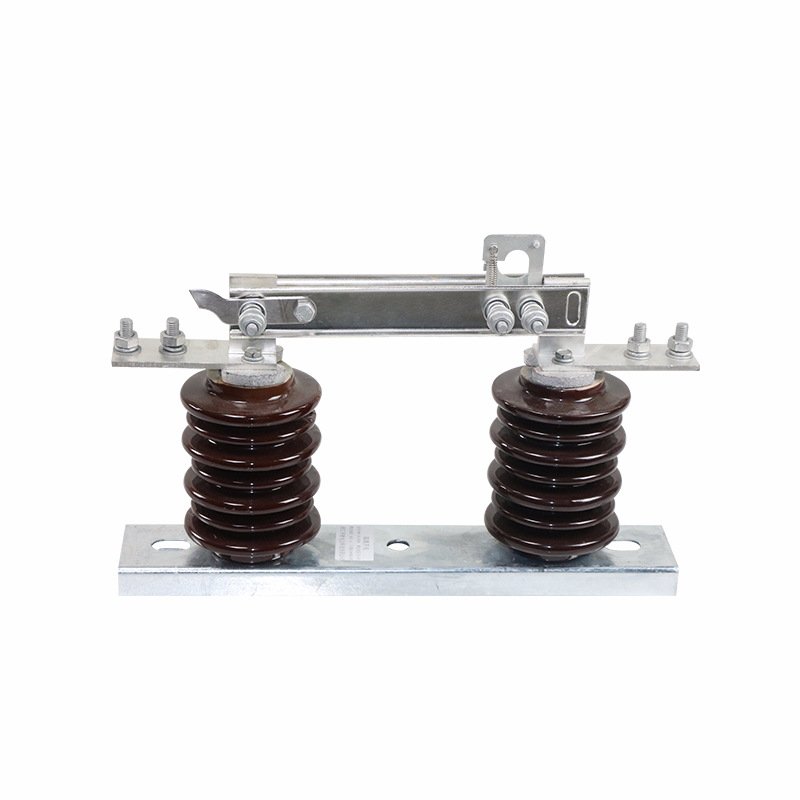

Product ModelGW9-35/630GW9-35/1250Product Price USD299-367(1-100)USD286-352(100-200)USD278-342(≥200)

Product Overview

This product is a three-phase line system single-phase use, simple structure, economy, easy to use.This product is a single-break vertical open structure, single-pole isolation switch pillar insulator is installed on the respective base frame, mainly by the base, pillar insulator, the main circuit part, self-locking device and so on. The knife structure is used to cut off and close the circuit. Each phase of the knife is composed of two conductive blades, both sides of the blade are equipped with compression springs, adjusting the height of the spring can obtain the contact pressure required by the switch knife. When the switch is opened and closed, the insulated hook rod is used to operate the mechanism part, and the knife has a self-locking device.

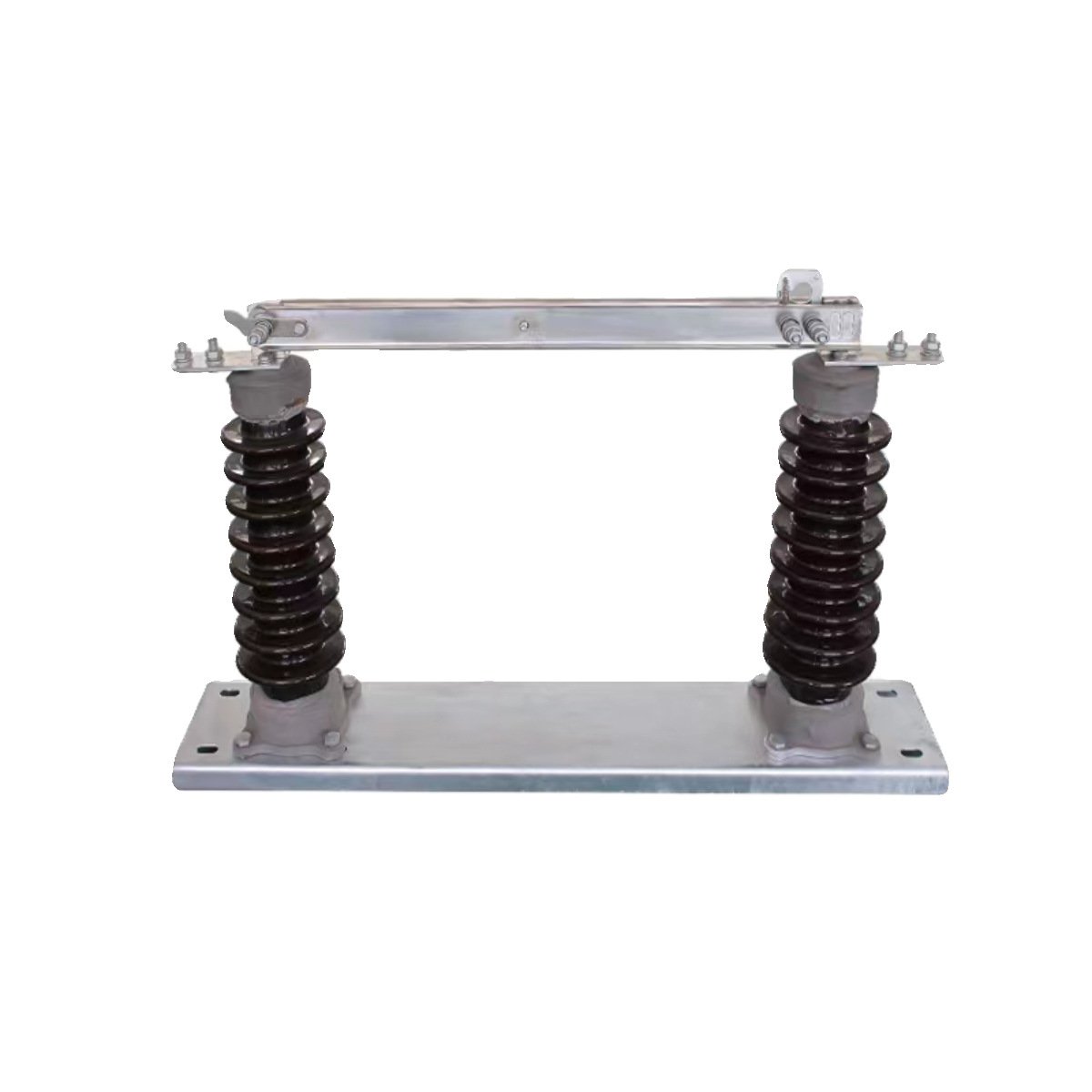

Product ModelGW9-24/630GW9-24/1250Product Price USD212-283(1-100)USD203-269(100-200)USD197-262(≥200)

Product Overview

This product is a three-phase line system single-phase use, simple structure, economy, easy to use.This product is a single-break vertical open structure, single-pole isolation switch pillar insulator is installed on the respective base frame, mainly by the base, pillar insulator, the main circuit part, self-locking device and so on. The knife structure is used to cut off and close the circuit. Each phase of the knife is composed of two conductive blades, both sides of the blade are equipped with compression springs, adjusting the height of the spring can obtain the contact pressure required by the switch knife. When the switch is opened and closed, the insulated hook rod is used to operate the mechanism part, and the knife has a self-locking device.

This product is a three-phase line system single-phase use, simple structure, economy, easy to use.This product is a single-break vertical open structure, single-pole isolation switch pillar insulator is installed on the respective base frame, mainly by the base, pillar insulator, the main circuit part, self-locking device and so on. The knife structure is used to cut off and close the circuit. Each phase of the knife is composed of two conductive blades, both sides of the blade are equipped with compression springs, adjusting the height of the spring can obtain the contact pressure required by the switch knife. When the switch is opened and closed, the insulated hook rod is used to operate the mechanism part, and the knife has a self-locking device.

Product ModelJN22-40.5/31.5Product PriceUS282(1-50)US269(50-100)US262(≥100)Product Introduction JN22-40.5/31.5 indoor high-voltage grounding switch is a new type of grounding switch with international advanced level developed by our company according to the prototype design of ES1 grounding switch. The structure is assembled, and its performance meets the requirements of GB1985-2004 "AC high voltage isolation switch and ground switch" and IEC129, which is suitable for indoor 3~12Kv three-phase AC 50(60)Hz power system: It has a certain closing ability to protect other electrical equipment in the switchgear from damage, and can be used with a variety of high-voltage switchgear as a grounding protection during the maintenance of high-voltage electrical equipment.Ambient conditions: Ambient air temperature: upper limit +40℃, lower limit -10℃; Earthquake sequence: not more than 8 degrees; Sea level: not more than 1000 meters; Pollution level: Class II. Humidity conditions: The average daily relative humidity does not exceed 95%, and the average monthly relative humidity does not exceed 90%.

Product ModelJN15-24/31.5Product PriceUS111(1-50)US106(50-100)US103(≥100)Product Introduction JN15-12/31.5 indoor high-voltage grounding switch is a new type of grounding switch with international advanced level developed by our company according to the prototype design of ES1 grounding switch. The structure is assembled, and its performance meets the requirements of GB1985-2004 "AC high voltage isolation switch and ground switch" and IEC129, which is suitable for indoor 3~12Kv three-phase AC 50(60)Hz power system: It has a certain closing ability to protect other electrical equipment in the switchgear from damage, and can be used with a variety of high-voltage switchgear as a grounding protection during the maintenance of high-voltage electrical equipment.Ambient conditions: Ambient air temperature: upper limit +40℃, lower limit -10℃; Earthquake sequence: not more than 8 degrees; Sea level: not more than 1000 meters; Pollution level: Class II. Humidity conditions: The average daily relative humidity does not exceed 95%, and the average monthly relative humidity does not exceed 90%.

Product ModelJN15-12/31.5Product PriceUS96(1-50)US91(50-100)US89(≥100)Product Introduction JN15-12/31.5 indoor high-voltage grounding switch is a new type of grounding switch with international advanced level developed by our company according to the prototype design of ES1 grounding switch. The structure is assembled, and its performance meets the requirements of GB1985-2004 "AC high voltage isolation switch and ground switch" and IEC129, which is suitable for indoor 3~12Kv three-phase AC 50(60)Hz power system: It has a certain closing ability to protect other electrical equipment in the switchgear from damage, and can be used with a variety of high-voltage switchgear as a grounding protection during the maintenance of high-voltage electrical equipment.Ambient conditions: Ambient air temperature: upper limit +40℃, lower limit -10℃; Earthquake sequence: not more than 8 degrees; Sea level: not more than 1000 meters; Pollution level: Class II. Humidity conditions: The average daily relative humidity does not exceed 95%, and the average monthly relative humidity does not exceed 90%.

GN30-12 rotary indoor high voltage isolation switch is a new type of rotary contact knife isolation switch, the main structure is in the three-phase common base frame on the upper and lower two planes, fixed two sets of insulators and contacts, through the rotary contact knife, so as to achieve the switch opening and closing.GN30-12D switch is based on GN30-12 switch with ground knife form, can meet the needs of different power systems. This product has compact design, small space occupation, strong insulation ability, easy to install and adjust, its performance meets the requirements of GB1985-89 "AC high voltage isolation switch and ground switch", suitable for rated voltage 10 dry volt AC 50Hz and below indoor system, as a voltage without load, the circuit is used. It can be used with high voltage switchgear, or can be used alone.Environmental conditions: Altitude: not more than 1000m; Air temperature: upper limit +40℃; Lower limit -10℃; Relative humidity: the daily average is not more than 95%, the daily average is not more than 90%; Earthquake intensity: not more than 8 degrees; Pollution level: no serious dust, chemical corrosion and explosive substances; Installation site: no frequent violent vibration site.
