Product Parameters
| Items | Unit | High Voltage Part |
| High Voltage Part | Rated vollage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current of main busbar | A | 630 |
| 1min power frequency withstand voltage (to earth and between phases/disconnecting fracture) | kV | 42/48 |
| Lightning impulse withstand voltage (to earth and between phases/disconnecting fracture) | kV | 75/85 |
| Rated short time withstand current | kA/s | 25/2 |
| Rated peak withstand current | kA | 63 |
| Rated short time making current | kA | 50 |
| Rated transfer current | A | 1500 |
| Breaking current of fuse | kA | 31.5-40 |
| Low Voltage Part | Rated voltage | V | 400 |
| Rated current of main circuit | A | 100-4000 |
| Rated Iimiting short circuit breaking ability | kA | 80 |
| Rated operating short circuit breaking ability | kA | 50(65) |
| Rated short time wilhstand current | kA/1s | 50(65) |
| Branch current,compensating capacity | | According to requirements of users |
| Transformer | Rated capacity | kVA | 30-2000 |
| Impedance voltage | % | 4 4.5 |
| Tapping range | % | ±2×2.5 ±5 |
| Connection symbol | | Y,,yn0 D.yn11 |
| Encloaure | Protection level ol enclosure | | IP43 |
| Sound level | dB | ≤50 |
The use of environmental conditions :
1. Ambient temperature: maximum temperature +40°C, minimum temperature -30P;
2. Altitude: 1000m;
3 wind speed: quite 34m/s (not more than 700Pa);
4. Humidity: the average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%;
5. Shock proof: horizontal acceleration is no more than 0.4m/s2; The vertical acceleration is not greater than 0.15m/s2;
6. Slope of installation site: no more than 3.;
7. Installation environment: the surrounding air is not obviously polluted by corrosive and flammable gases, and the installation site is not violently shaken;
8. If you order this product beyond the above conditions, you can negotiate with our company.

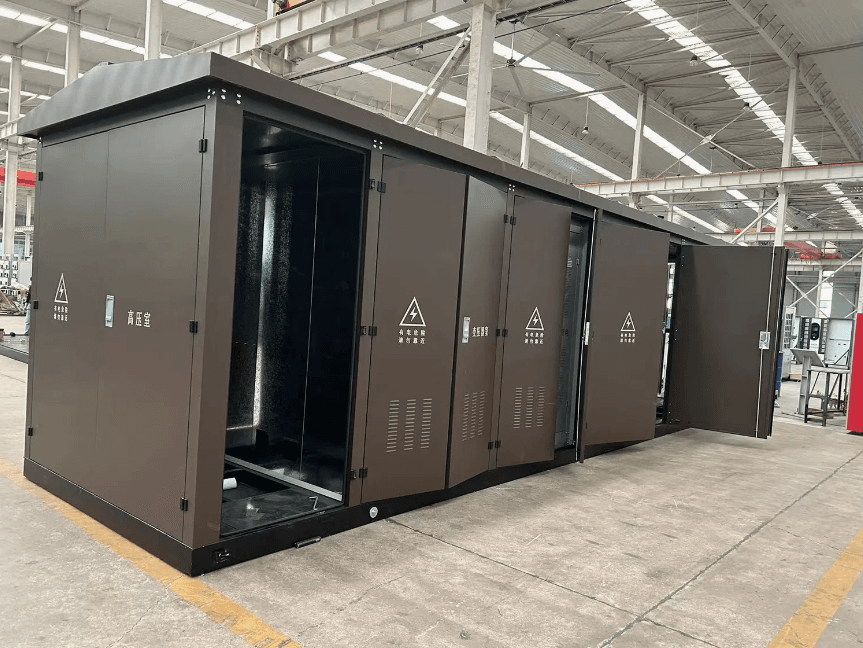

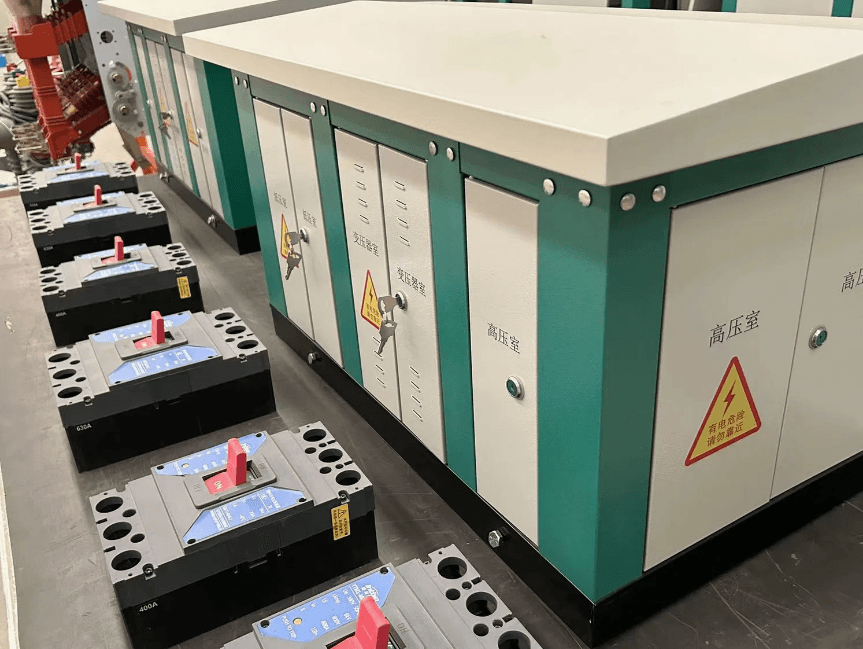

Product Manufacturing Process
Transformer substation plays the role of voltage conversion equipment is transformer, in addition, substation equipment also open and close circuit switchgear, current collection bus, measurement and control transformers, meters, relay protection devices and lightning protection devices, dispatching communication devices, and some substations have reactive power compensation equipment. The main equipment and connection mode of substation vary according to its different functions.
Transformer is the main equipment of substation, which is divided into double-winding transformer, three-winding transformer and self-destructive transformer, that is, high and low voltage each phase share a winding, and a head is drawn from the middle of the high voltage winding as the outlet of the low voltage winding transformer. The voltage is proportional to the number of turns and the current is inversely proportional to the number of turns.
Fields of application
In addition to providing convenience for People’s Daily electricity needs in the city, substations are also widely used in wind farms, photovoltaic power stations, hydropower stations, nuclear power plants, hub substations, important converter stations, backbone power grids, important transmission channels and other energy infrastructure scenarios
The daily management of the use of substation equipment is responsible for the implementation of the principle of “who uses, who manages”. Equipment personnel should be employed, and the equipment personnel should have basic knowledge of substation equipment and certain experience in equipment management. The use of substation equipment should be equipped with sufficient staff (operators, command personnel and maintenance personnel) in accordance with regulations. Operators must be licensed to work in accordance with regulations. The staff used by the substation equipment should be competent for the work performed and familiar with the performance characteristics and maintenance requirements of the equipment used.
Certifications

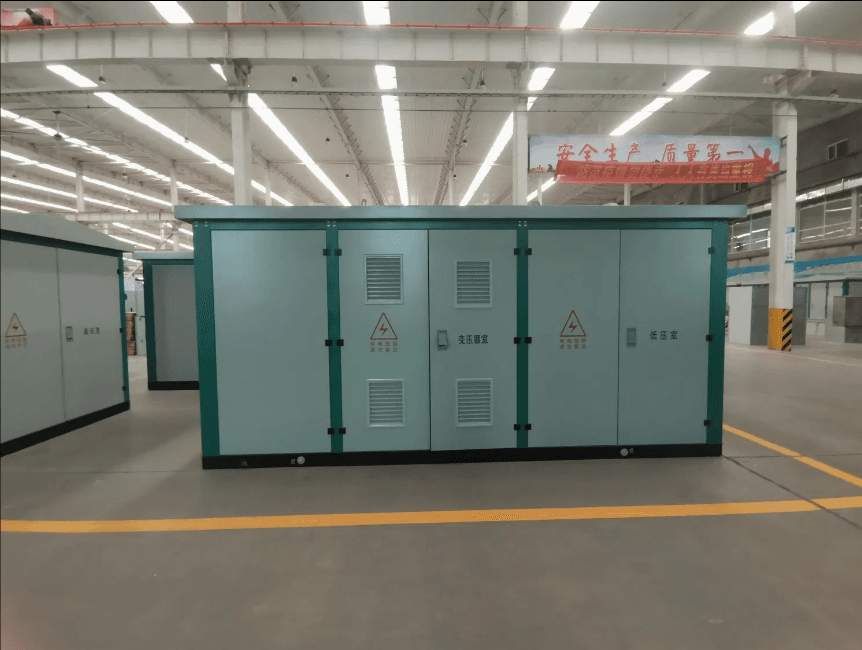

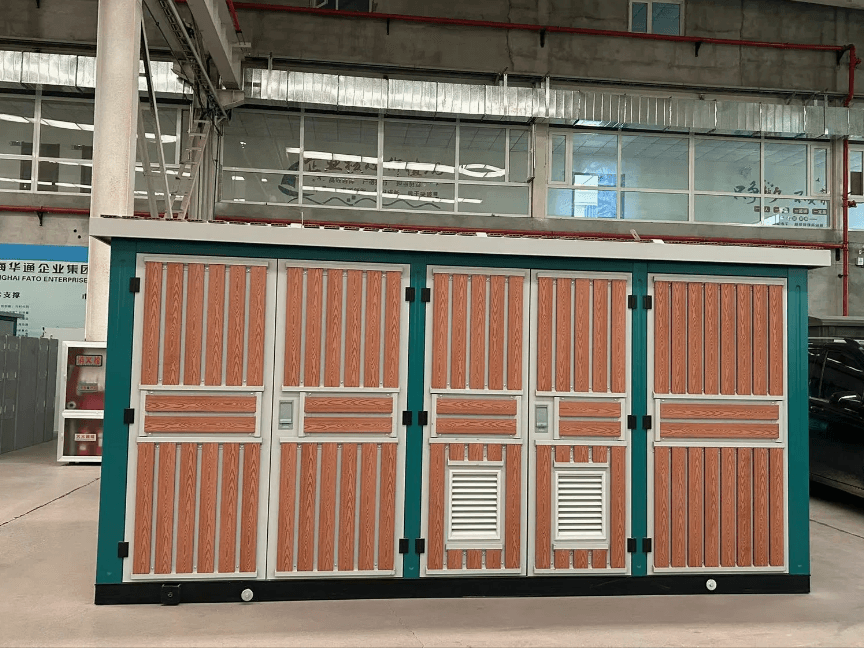

Workshop
FAQ
- What services can we provide?
Accept customization/OEM/ODM or according to your requests.
Accept to provide you with professional technical solutions.
Accept to provide professional after sales service, we have professional local service team in America, Australia, Africa and many other places, can solve any problems in the process of use for you in a timely manner.2. How long does it take to manufacture once an order has been placed?
It depends on the volume of the order. Within 4-8 weeks after placing the order3. ls it possible to put our logo on your product or product packaging?
0f course, we have a factory, welcome to customize such as your brand, Logo, Color.packaging , we can according to clients requirements(different countries different standard) to design and produce.4. Why did our Customers choose us?
We are a professional factory with more than 20 years experience in the field of Transformers and power electronic equipment. we also have a completecustomer service. Customers worldwide can securely rely on the quality and reliability of our products.
