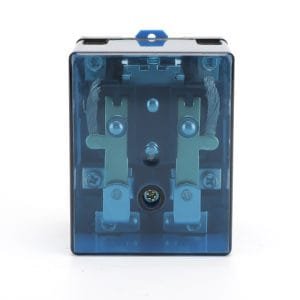

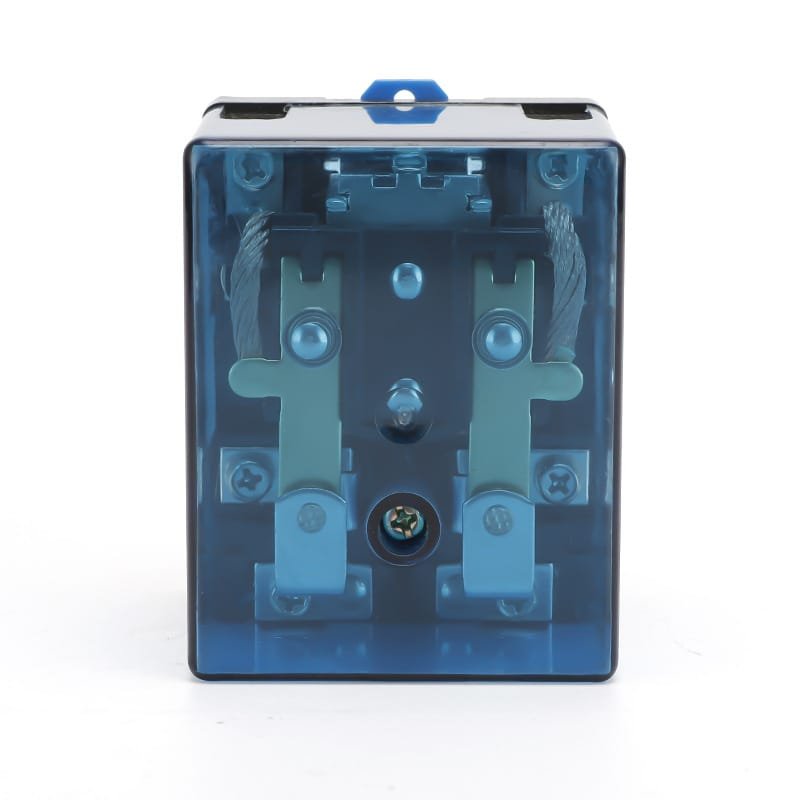

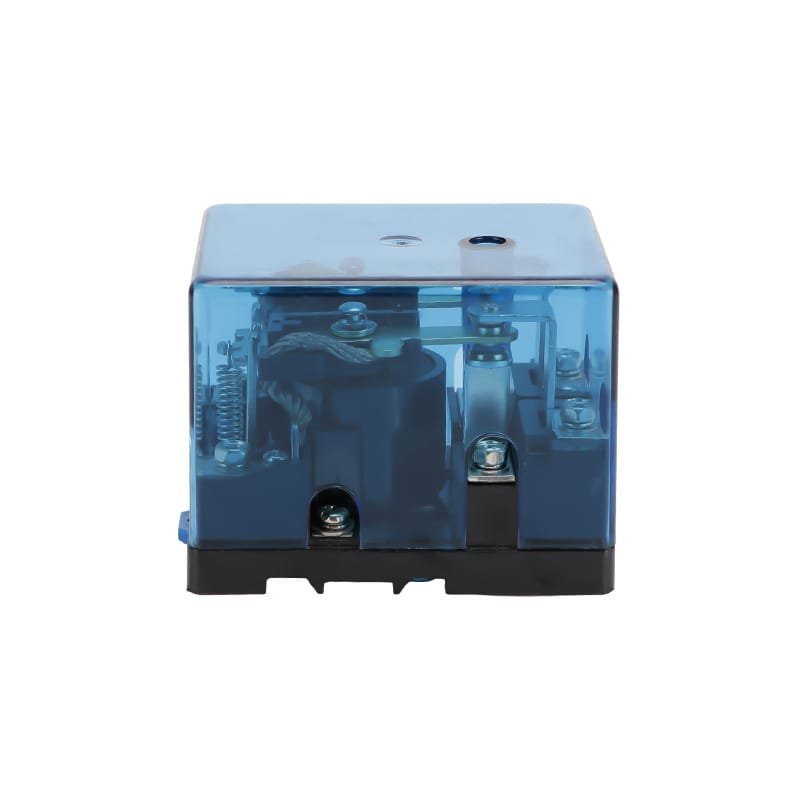

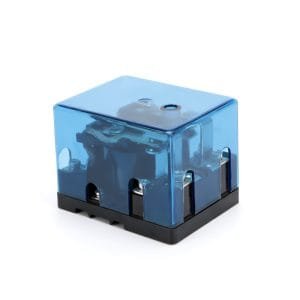

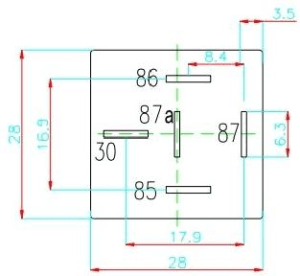

JD1912
A relay is an electrically operated switch. It consists of a control circuit and a load circuit. When a small electric current passes through the control circuit, it can cause the relay to close or open the contacts in the load circuit. This allows a relatively small electrical signal to control a much larger current or voltage in another circuit. Relays are widely used in various electrical and electronic systems. For example, in industrial control systems, they can be used to start or stop motors. In automotive electronics, relays are often used to control high power components such as headlights and horns. They play an important role in ensuring the normal operation and safety of electrical equipment.
SPECIFICATION
1.CONTACT DATA
| Contact Material | AgSn012 |
| Contact Form | 1Z(1C)\1H(1A) |
| Contact Ratings | N0:80A14VDC |
| Contact Resistance | 100mMax at6VDC 1A |
| Max Switching Current | 80A |
| Max Switching Voltage | 75VDC |
| Max Switching Power | 80A |
| Life Expectancy Electrical 100,000 Operations(at300perations/minute) | |
| Life Expectancy Machanical | 10,000,0000perations |
2.COIL SPECIFICATION
| Nominal Voltage (VDC) | Coil Resistance (Ω) | Max Operate Voltage (VDC) | Mix Release Voltage (VDC) | Max Applicable Voltage (VDC) |
| 1.8w | ||||
| 12 | 80 | 6.0~8.0 | 0.6~3.6 | 15.6 |
| 24 | 320 | 12~16.0 | 1.2~7.2 | 31.2 |
3.CHARACTERISTICS:
| Temperature Range | -30℃~+80℃ | |
| Vibration Resistance | 10~55Hz,1.5mm | |
| Shock Resistance | Operations Extremes | 10g |
| Damage Limits | 100g | |
| humidity | 40%～85% | |
| Insulation Resistance | 100mQ Min at500VDC | |
| Safety Standard | CCEE认证 | |
| Dielectric Strength Between Open Contacts | 500VAC(for one minute/sec) | |
| Between Contact and coil | 750VAC(for one minute/sec | |
| Operate Time | 7ms | |
| Release Time | 5ms | |
| Weigh 重量 | 35g Apptox | |
