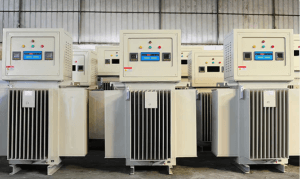

Brief Introduction about Tunnel high-power three-phase oil immersed voltage regulator below:
Product details:
1.Main features:
High power output: The rated power of this voltage regulator is 150KVA, suitable for power supply to three-phase high-power loads. It can withstand large loads and ensure stable supply of required voltage even under high current load conditions.
Oil immersed cooling technology: This equipment adopts an oil immersed cooling system, and oil as the cooling medium has good thermal conductivity, which can effectively absorb and dissipate the heat generated during the working process, maintain the internal temperature of the equipment within a reasonable range, ensure stable operation, and extend the service life of the equipment.
Three phase voltage stabilization function: This device is designed specifically for three-phase systems and can achieve balanced regulation of three-phase voltage. Even in the case of unstable grid voltage, it can still provide stable and balanced voltage output for three-phase loads, ensuring safe and efficient operation of equipment.
Efficient voltage regulation: The equipment has excellent voltage regulation capabilities and can automatically adjust the output voltage within the range of input voltage fluctuations, ensuring stable power supply. The input voltage fluctuation range is wide, usually up to ± 20%, while the output voltage fluctuation is controlled within ± 1%, with strong adaptability.
Multiple protection functions: This device has multiple safety protection functions such as overload protection, overvoltage protection, undervoltage protection, and short circuit protection. When the voltage or current exceeds the safe range, the voltage regulator can automatically shut down to prevent damage to electrical equipment.
Durability and stability: The casing of this voltage regulator is made of high-quality metal materials, which have excellent protective performance, high temperature resistance, and moisture resistance, and are suitable for various harsh working environments. At the same time, the oil immersed design reduces the noise pollution of the equipment, resulting in lower noise during operation, making it suitable for places with environmental noise requirements.
Energy saving and environmental protection: While ensuring efficient voltage regulation, this equipment has low energy loss, which can effectively save electricity consumption and reduce operating costs. Oil immersed cooling not only improves heat dissipation efficiency, but also reduces the impact on the environment.
Intelligent control system: This voltage regulator is equipped with an intelligent control system that can monitor the working status of the equipment in real time, including input voltage, output voltage, load current and other parameters. Through the intelligent controller, users can easily adjust device settings to ensure that the voltage regulator operates at its optimal working state.
2.Technical parameters:
Rated power: 150KVA
Input voltage range: 380V ±20%
Output voltage range: 380V ±1%
Voltage stabilization accuracy: ±1%
Working frequency: 50Hz
Overload protection: automatic cut-off
Overvoltage protection: automatic power-off
Undervoltage protection: automatic power-off
Short circuit protection: automatic power-off
Cooling method: oil immersed
Noise: ≤ 55dB
Applicable ambient temperature: -10 ℃ to 50 ℃
Protection level: IP23
Dimensions (length x width x height): 1200mm×800mm×1300mm
Weight: 450kg
Installation and maintenance:
The installation of a 150KVA Tunnel high-power three-phase oil immersed voltage regulator needs to be designed and installed according to the power distribution system of the factory building. During installation, it is required to place the voltage regulator in a well ventilated area and avoid direct sunlight and high temperature sources. Due to the use of oil immersed cooling technology in the equipment, it is necessary to regularly check the oil level and quality to ensure its normal operation. In addition, electrical connection points should be regularly checked for looseness to ensure safe and reliable wiring.
